TYPES OF COUPLINGS

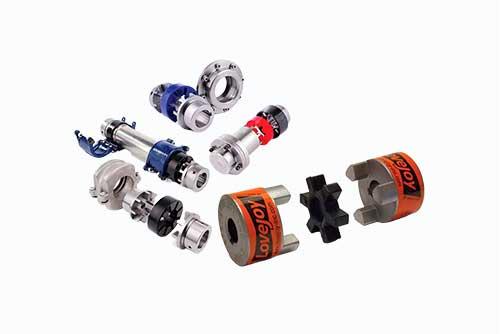

ELASTOMERIC COUPLINGS
At Geomec, we offer Timken Lovejoy elastomeric couplings, ideal for low-to-moderate torque applications. Thanks to their innovative Timken-Lovejoy design, these couplings eliminate metal-to-metal contact, meaning they require no lubrication and minimal maintenance. This makes them a highly efficient and reliable solution for your operations.
METAL COUPLINGS
At Geomec, we offer Timken-Lovejoy metal couplings, designed to meet the most demanding challenges. These couplings are the ideal solution for applications requiring high torque, high speeds, high torsional rigidity, or minimal backlash. Ensure robust and precise performance in your most critical operations.
Types of Elastomeric Couplings
STRAIGHT CLAMP TYPE “L”
·Inner diameter range for shafts from 1/8” to 7 in and from 6 to 170 mm, can reach capacities up to 400 mm (16 in).
Availability of several spiders (stars), depending on operating conditions (torque, misalignment, environment, etc.)
QUICK FLEX
Inside diameter range from 1/4" to 20 in and from 6 to 500 mm.
4 inserts available to meet torque and environment requirements.
3 covers available for various application and installation needs.

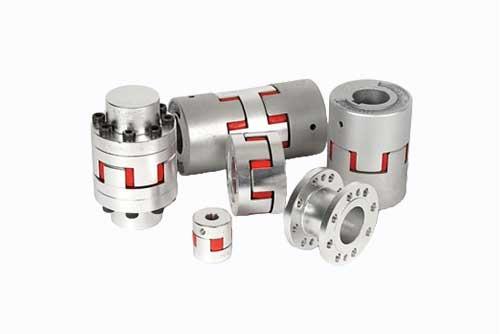

CURVED CLAMP TYPE CJ
Inside diameter range: 1/8” to 7-5/8” and 4 to 200 mm.
Availability of several spiders (stars), depending on operating conditions (torque, misalignment, environment, etc.)

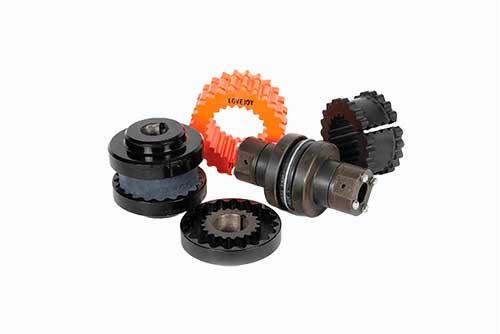

S-FLEX ENDURANCE
Inside diameter range: 3/8” to 5-1/2” and 9 to 90 mm.
Interchangeable with sizes 3 to 16 according to industry standards.
3 inserts available to meet different torque and environment requirements.
Types of Metal Couplings
GRID COUPLINGS
It uses a spring element to attenuate vibration.
Cushions shock and impact loads to reduce vibration by 30%.
·24 shaft sizes, up to 500 mm (20 in)
Fully interchangeable with industry standard, up to size 1250.
GEAR COUPLINGS
It uses multi-tooth gears to deliver maximum power density, superior to any other type of coupling in the industry.
Shaft sizes from 50 to 1200 mm (2” to 46”)
The HercuFlex design has approximately 25% greater torque capacity than legacy gear designs.
DISC COUPLING
Eliminates the need for coupling lubrication and maintenance.
The coupling can be inspected without disassembly.
Long service life when properly sized and aligned.
